EC-21 pH • EC 26 pH
All features at a glance
• high-resolution colour display,
adjustable brightness
• DHS function, automatic recognition of
DHS and analogue sensors
• Display of pH/mV and temperature values
• automatic pH calibration up to 3 points
• automatic ORP 1-point calibration
• selectable stability parameter
(low-medium-high)
• automatic and manual temperature
compensation
• Protection class IP 57

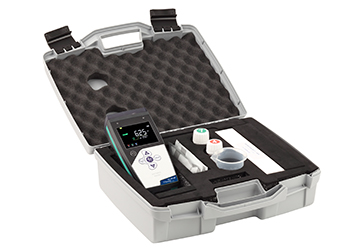

• Supplied in a robust transport case
with all accessories
|
 |
|
|
EC-26 pH
additional for EC-26 pH
• GLP functions
• Data logger (automatic or manual)
1000 data records
• Connection to PC via micro-USB
• free DATA LINK +
• automatic brightness adjustment
|
 |
|
Portable pH-Meters EC-21 pH • EC-26 pH
In the development of the new EC-21/EC-26 series, a particular focus was put on easy handling during daily routine.
The high-resolution color display guides the user intuitively through all measurement and calibration processes.
|
|
Technical data
Meas. Range/Resolution(pH)
Measuring Accuracy (pH)
Calibration points
Buffer solutions
Measuring range (mV)
Resolution (mV)
Temp. measuring range (°C)
Resolution/Accuracy (°C)
GLP
Memory
Interface
IP-class
Dimension
Weight
Warranty instrument
|
EC-21 pH
0,00 … 14,00
0,1 – 0,01
1 … 3
USA, NIST and
User defined
±1.000
1
0...100,0
0,1 °C / ± 0,5
-
-
-
IP 57
184 x 85 x 45 mm
400g
3 years
|
EC-26 pH
-2,00 … 16,00
0,1 – 0,01
1 … 3
USA, NIST and
User defined
-1.000 ... 1900
0,1 / 1
-10...100,0
0,1°C / ± 0,5
yes
1000 data
Micro USB
IP 57
184 x 85 x 45 mm
400g
3 years
|
|
Various sets are available
EC-21-pH-0
Kit without pH electrode, with temperature sensor, cable S7/BNC, pH buffer solution, carrying case and accessories.
EC-21-pH-1
Kit included pH electrode 201T, pH buffer solution, carrying case and accessories
EC-21-pH-5
Kit included pH electrode 201T-DHS, pH buffer solution, carrying case and accessoriesr
EC-26-pH-0
Kit without pH electrode, with temperature sensor, cable S7/BNC, pH buffer solution, carrying case and accessories
EC-26-pH-1
Kit included pH electrode 201T, pH buffer solution, carrying case and accessories.
EC-26-pH-5
Kit included pH electrode 201T-DHS, pH buffer solution, carrying case and accessoriesl
Kit EC-21-pH-1
|
