Balances
AP - Series
The AP-series is the first line of semi-micro balances, equipped with the revolutionary UNIBLOC-weighing system. It guarantees brilliant stability, response and reliability characteristics.
The innovative and compact construction of the weighing cell in relation with the digital process technology enables fastest weighing results and highest stability.
• automatic adjustment to environmental conditions
• huge, user-friendly weighing chamber
• RS-232 interface
• easy handling of all procedures
• direct data transfer into Windows application
by Windows direct function
• various application programs
(e. g. formulation, counting, %, density determination)
• weighing in different units
• weighing below the balance
• GLP/GMP-conform protocol
• user-defined printing intervals
• protection cover as standard
• backlit display (only at 0.1 mg)
• aluminum die-cast housing
• 5 years warranty
• EU verified on demand
AP-224
Three calibration procedures
• fully automatic calibration after temperature deviation
• fully automatic calibration at user-defined time intervals
• calibration per push CAL-button with built-in calibration weight
Model
AP-225
AP-225V
AP-125
AP-125V
AP-324
AP-324V
AP-224
AP-224V
AP-124
AP-124V
Accuracy
0.01 mg / 0.1 mg
0.01 mg / 0.1 mg
0.01 mg / 0.1 mg
0.01 mg / 0.1 mg
0.1 mg
0.1 mg
0.1 mg
0.1 mg
0.1 mg
0.1 mg
Capacity
82 g / 220 g
82 g / 220 g
42 g / 220 g
42 g / 220 g
320 g
320 g
220 g
220 g
120 g
120 g
Pan size
80 mm
80 mm
80 mm
80 mm
80 mm
80 mm
80 mm
80 mm
80 mm
80 mm
Meas. time
3/15 sec
3/15 sec
3/12 sec
3/12 sec
3 sec
3 sec
3 sec
3 sec
3 sec
3 sec
EU Verification
no
yes
no
yes
no
yes
no
yes
no
yes
ASN / ABN - Series
The ASN / ABN-Series is the all-round analytical balance for the laboratory. It guarantees brilliant stability, response and reliability characteristics.
The innovative and compact construction of the weighing cell in relation with the digital process technology enables fastest weighing results and highest stability.
• huge, user-friendly weighing chamber
• easy handling of all procedures
• RS-232 interface
• direct data transfer into Windows
application by Windows direct function
• various application programs
(e. g. formulation, counting, %)
• GLP/GMP-conform protocol
• user-defined printing intervals
• aluminum die-cast housing
• protection cover as standard
• 3 years warranty
• EU verified on demand

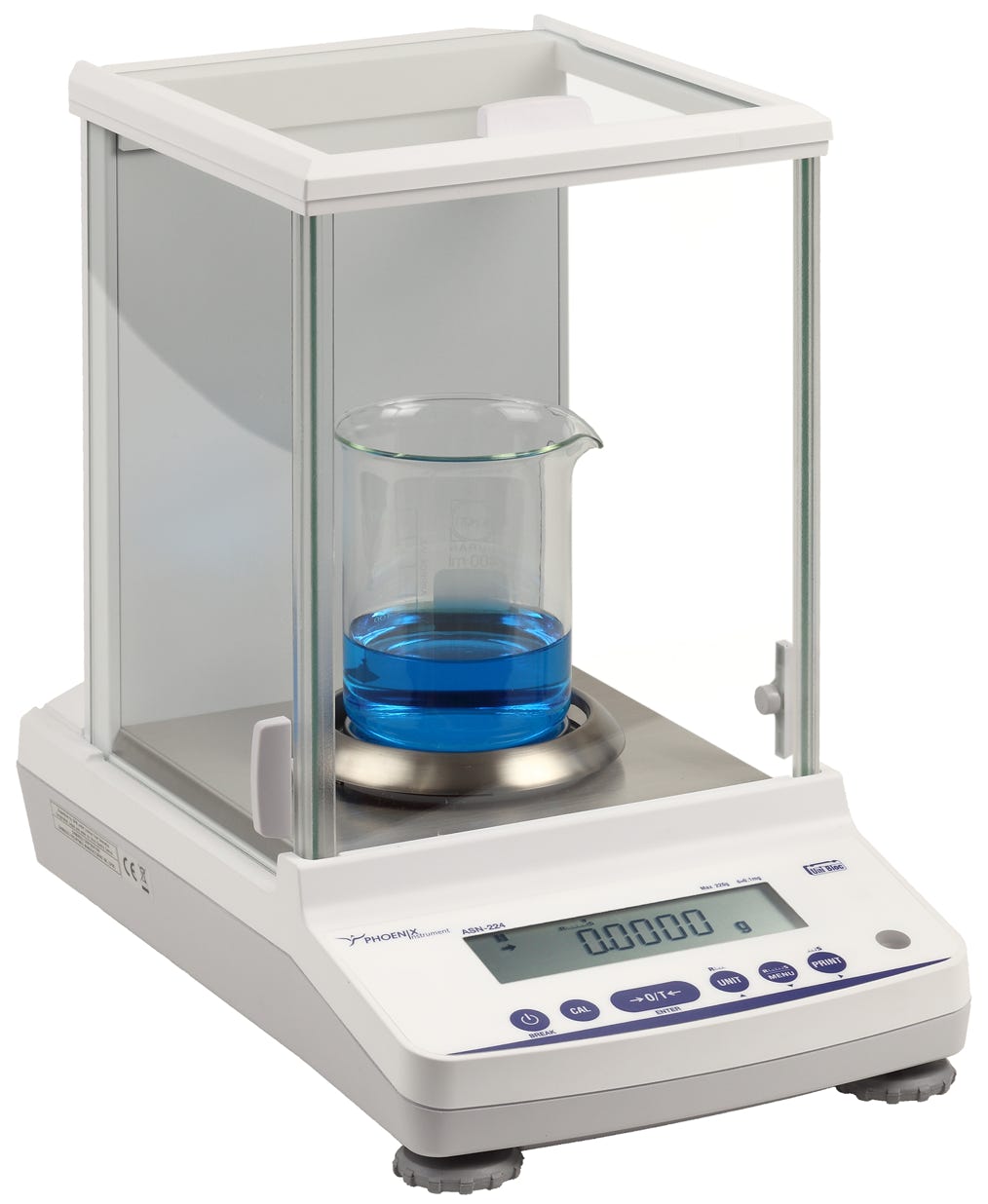

ASN-224
Model
ASN-324
ASN-224
ASN-224V
ASN-124
ASN-124V
ABN-224
ABN-124
Accuracy
0.1 mg
0.1 mg
0.1 mg
0.1 mg
0.1 mg
0.1 mg
0.1 mg
Capacity
320 g
220 g
220 g
120 g
120 g
220 g
120 g
Pan size
90 mm
90 mm
90 mm
90 mm
90 mm
90 mm
90 mm
Calibration
internal
internal
internal
internal
internal
extern
extern
Meas. time
2 - 3 sec
3 sec
3 sec
3 sec
3 sec
3 sec
3 sec
EU verification
no
no
yes
no
yes
no
no

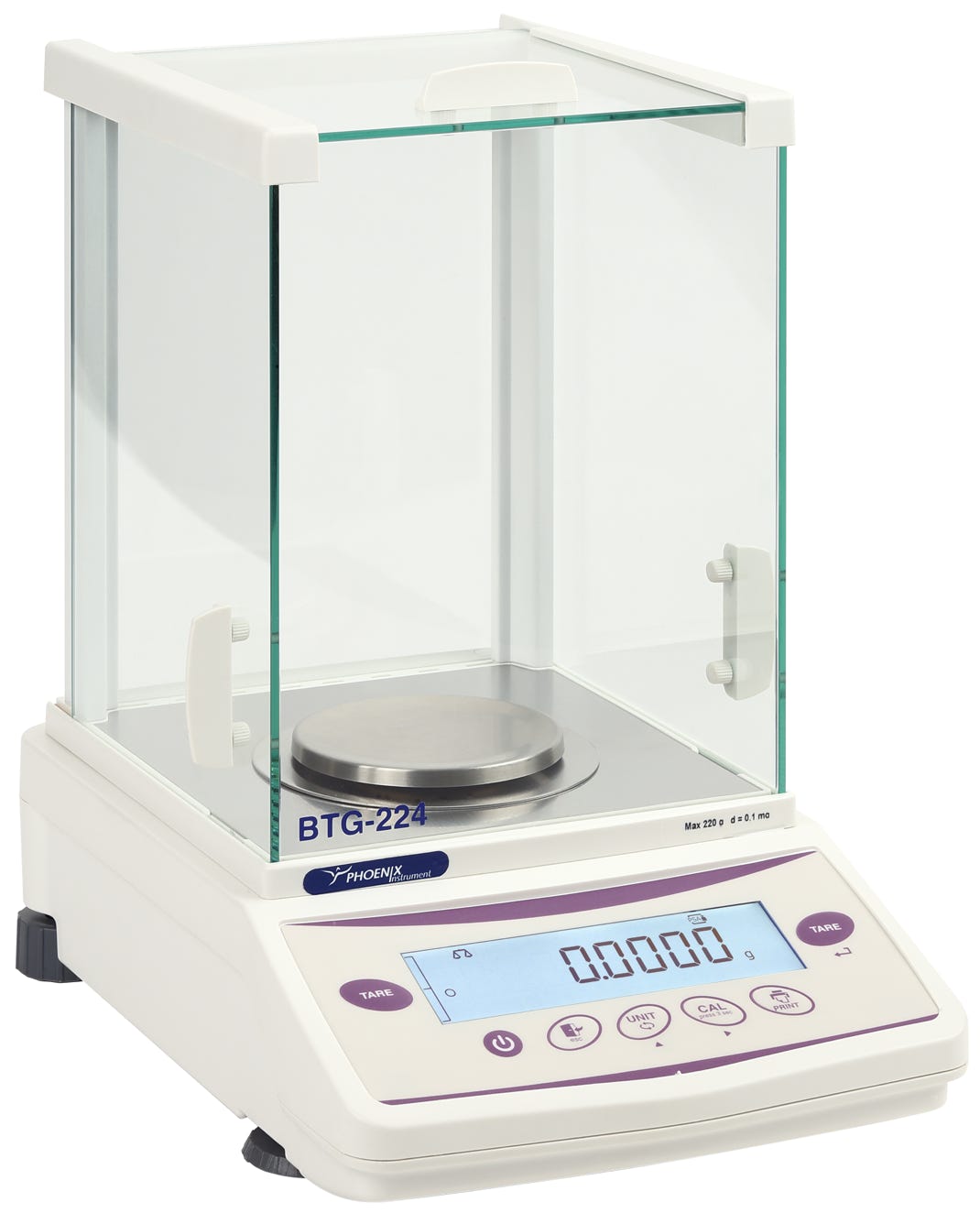

BTG - 224
The new neue analytical balance BTG-224 is ideal for all lab purpose. It combines easy handling, modern design and precise results.
• internal calibration
• reliable weighing system
• GLP-conform protocol (when connected to PC or printer)
• different user programs
• RS-232 Interface
• 3 years warranty
• protection cover
BTG-224
BTG-224
Capacity
Accuracy
Reproducibility
Linearity
Meas. time
Rechargeable Batteries
Pan size
220 g
0.1 mg
0.1 mg
0.2 mg
3 sec
yes
90 mm
BTA - Series
The BTA-Series is equipped with the revolutionary UNIBLOC-weighing system. It guarantees brilliant stability, response and reliability characteristics.
The innovative and compact construction of the weighing cell in relation with the digital process technology enables fastest weighing results and highest stability.
• automatic adjustment to environmental conditions
• easy handling of all procedures
• RS-232 interface
• weighing in different units
• weighing below the balance
• direct data transfer into Windows application by Windows direct function
• various application programs (e. g. formulation, counting, animal weighing ...)
• GLP/GMP-conform protocol
• user-defined printing intervals
• aluminum die-cast housing
• protection cover as standard
• backlit display
• 5 years warranty
• EU verified on demand

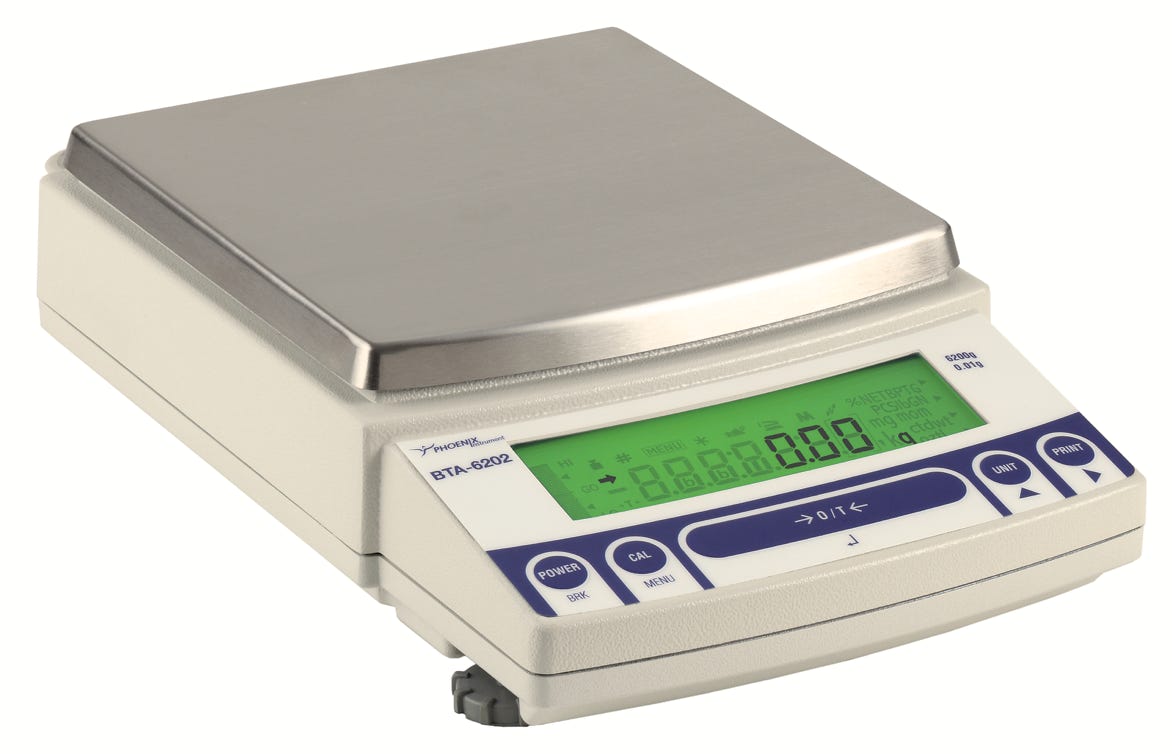

BTA-6202
Three calibration procedures
• fully automatic calibration after temperature deviation
• fully automatic calibration at user-defined time intervals
• calibration per push on the CAL-button with built-in calibration weight
Model
BTA-1023
BTA-623
BTA-623V
BTA-423
BTA-423V
BTA-6202
BTA-6202V
BTA-4202
BTA-4202V
BTA-2202
BTA-2202V
BTA-822
BTA-822V
BTA-8201
BTA-4201
Accuracy
0.001 g
0.001 g
0.001 g
0.001 g
0.001 g
0.01 g
0.01 g
0.01 g
0.01 g
0.01 g
0.01 g
0.01 g
0.01 g
0.1 g
0.1 g
Capacity
1,020 g
620 g
620 g
420 g
420 g
6,200 g
6,200 g
4,200 g
4,200 g
2,200 g
2,200 g
820 g
820 g
8,200 g
4,200 g
Pan size
108 x 105 mm
108 x 105 mm
108 x 105 mm
108 x 105 mm
108 x 105 mm
170 x 180 mm
170 x 180 mm
170 x 180 mm
170 x 180 mm
170 x 180 mm
170 x 180 mm
170 x 180 mm
170 x 180 mm
170 x 180 mm
170 x 180 mm
Meas. time
3 sec
3 sec
3 sec
3 sec
3 sec
3 sec
3 sec
3 sec
3 sec
3 sec
3 sec
3 sec
3 sec
3 sec
3 sec
EU verification
no
no
yes
no
yes
no
yes
no
yes
no
yes
no
yes
no
yes
BTB - Series
The BTB-Series is equipped with the revolutionary UNIBLOC-weighing system which guarantees brilliant stability, response and reliability characteristics.
The innovative and compact construction of the weighing cell in relation with the digital process technology enables fastest weighing results and highest stability. Calibration per push on the CAL-button with an external calibration weight.
• automatic adjustment to environmental conditions
• easy handling of all procedures
• RS-232 interface
• weighing in different units
• weighing below the balance
• direct data transfer into Windows application by Windows direct function
• various application programs (e. g. formulation, counting, %, animal weighing...)
• user-defined printing intervals
• aluminum die-cast housing
• backlit display
• 5 years warranty
• protection cover as standard
External Calibration
3 seconds measuring time

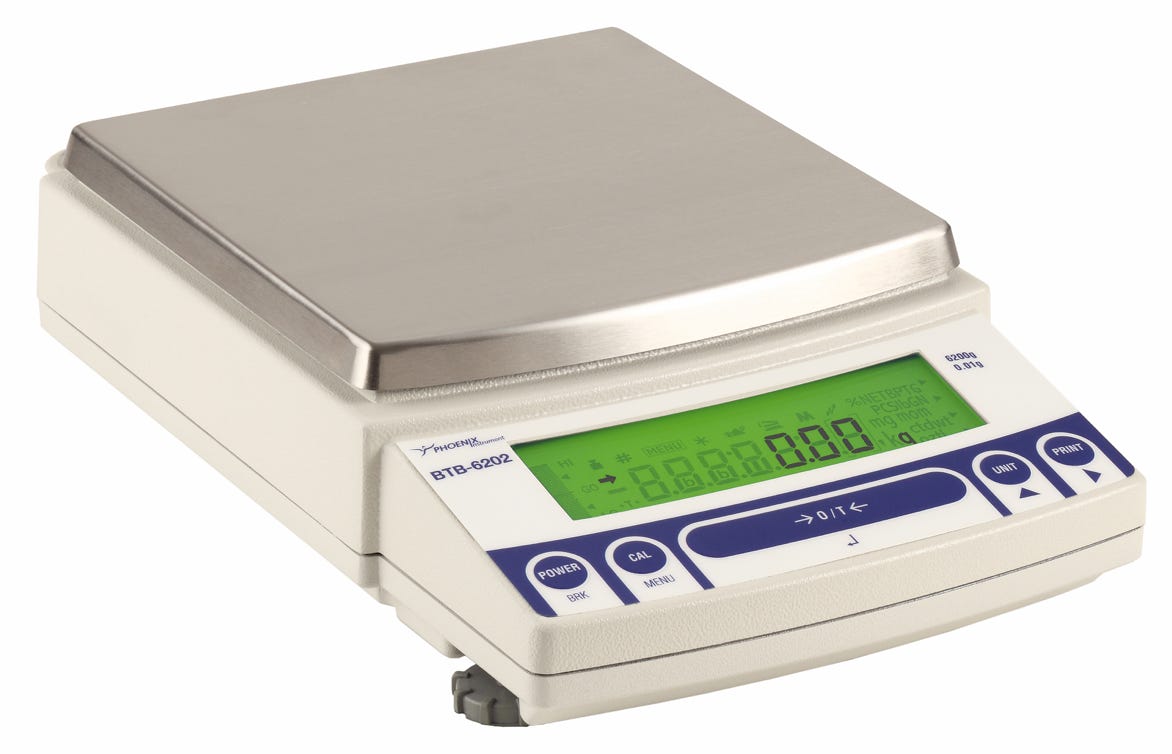

BTB-6202
Model
BTB-623
BTB-423
BTB-6202
BTB-4202
BTB-2202
Accuracy
0.001 g
0.001 g
0.01 g
0.01 g
0.01 g
Capacity
620 g
420 g
6,200 g
4,200 g
2,200 g
Pan size
108 x 105 mm
108 x 105 mm
170 x 180 mm
170 x 180 mm
170 x 180 mm
BTC - Series
The brandnew BTC-Series sets new standards with the revolutionary weighing system UNIBLOC and the state-of-the-art design.
• built-in calibration weight
• separate stability indication
• RS-232 interface
• huge weighing chamber with glass
wind protection as standard
• fast and convenient handling with
the new menu operating key
• direct data transfer into Windows
application by Windows direct function
• various application programs
(e. g. formulation, counting, %)
• new backlit display for more
comfortable readings
• 5 years warranty
• EU verified on demand

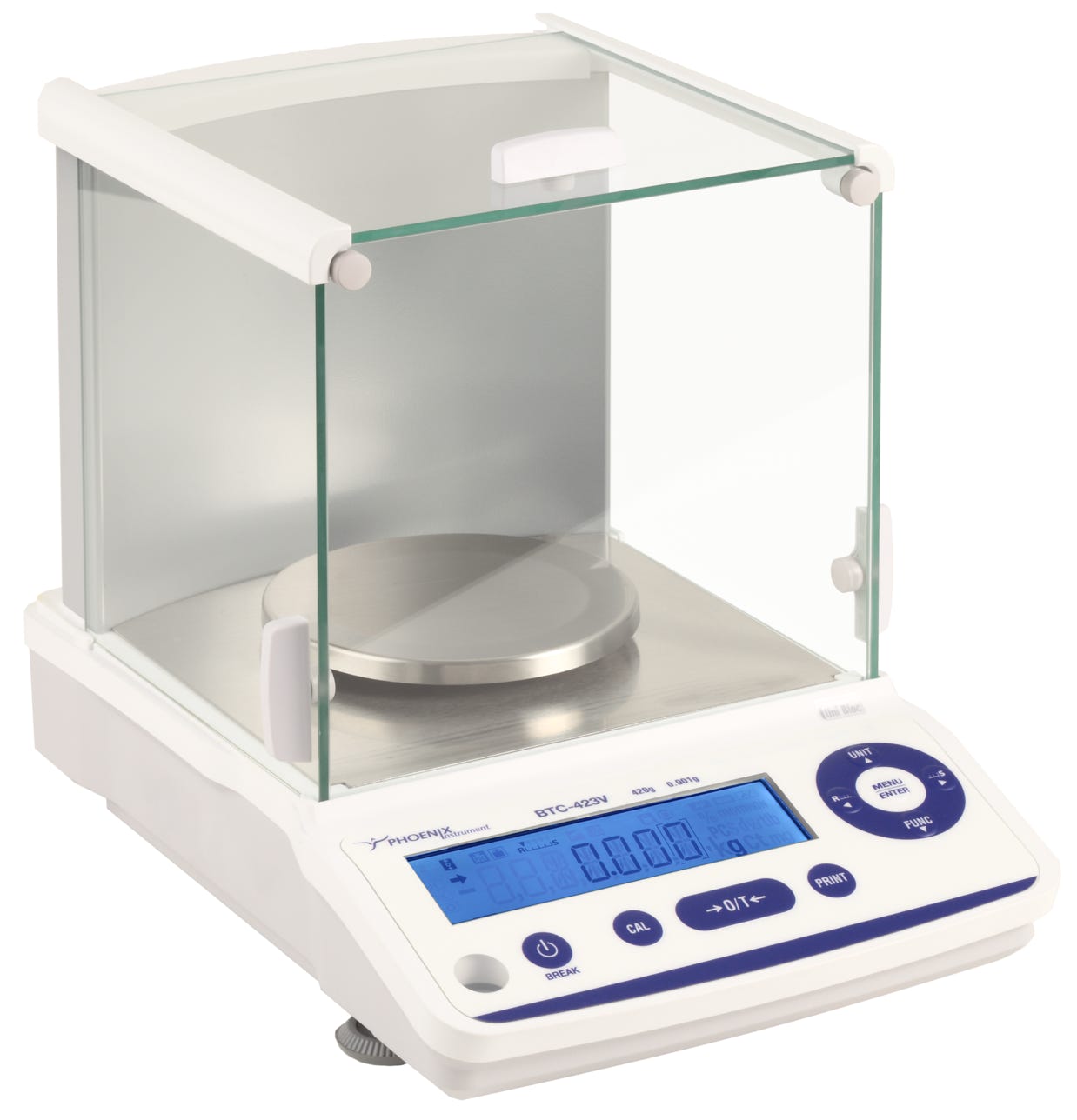

BTC-423V
Internal calibration
2 seconds measuring time
Model
BTC-423
BTC-323
BTC-223
Accuracy
0.001 g
0.001 g
0.001 g
Capacity
420 g
320 g
220 g
Pan size
110 mm
110 mm
110 mm
BTD - Series
The BTD-Series combines state-of the art design, easy handling, extensive equipment and brilliant weighing results delivered by using the revolutionary UNIBLOC-weighing system, to a unique standard balance.
• calibration per push on the CAL-button with an external calibration weight
• separate stability indication
• RS 232 interface
• huge weighing chamber with glass wind protection as standard (mg-balances)
• fast and convenient handling with the new menu operating key
• direct data transfer into Windows application by Windows direct function
• various application programs (e. g. formulation, counting, %)
• new backlit display for more comfortable readings
• 5 years warranty
• many models EU verified on demand
External calibration
2 seconds measuring time

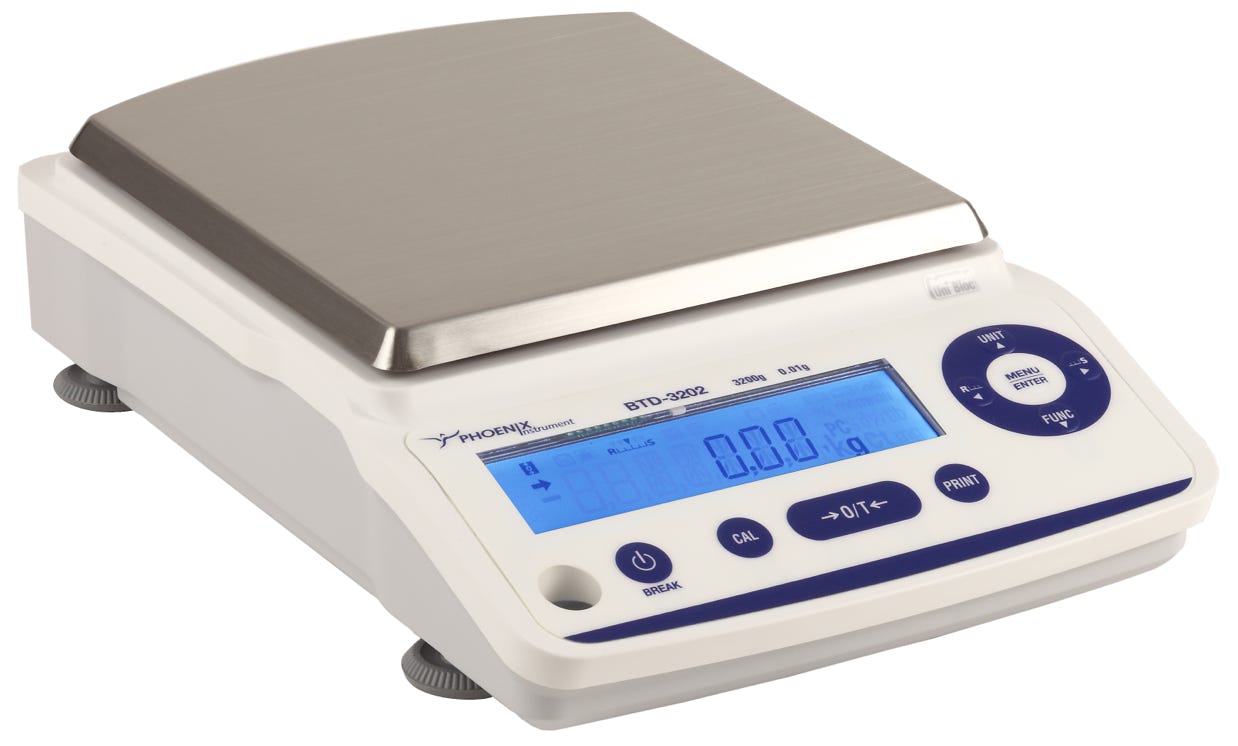

BTD-3202
Model
BTD-423
BTD-323
BTD-223
BTD-4202
BTD-3202
BTD-2202
Accuracy
0.001 g
0.001 g
0.001 g
0.01 g
0.01 g
0.01 g
Capacity
420 g
320 g
220 g
4,200 g
3,200 g
2,200 g
Pan size
110 mm
110 mm
110 mm
167 x 181 mm
167 x 181 mm
167 x 181 mm
BTE - Series
State-of-art-design, smart handling, extensive equipment, top prices.
• calibration per push on the CAL-button with an external calibration weight
• separate stability indication
• fast and convenient handling with the new menu operating key
• direct data transfer into Windows application by Windows direct function
• RS 232 interface
• various application programs (e. g. formulation, counting, %)
• new backlit display for more comfortable readings
• 3 years warranty
BTE-622
External calibration
2 seconds measuring time
Model
BTE-622

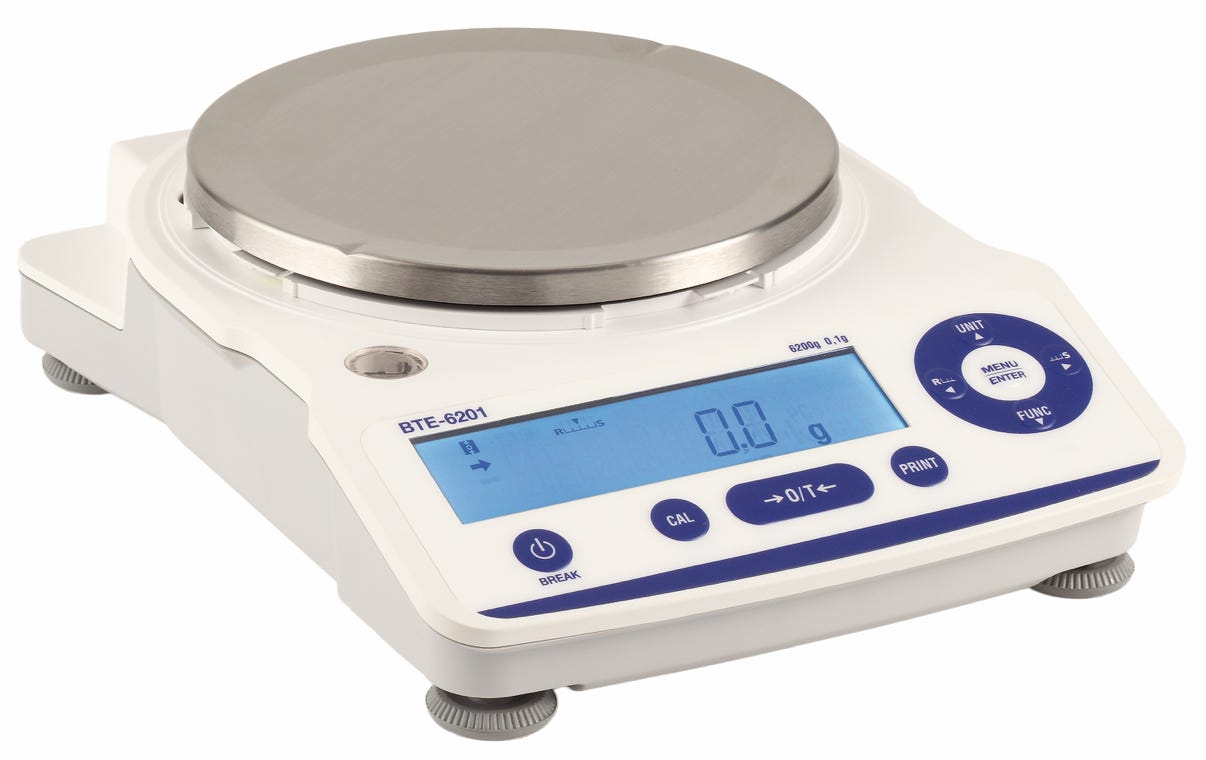

BTE-6201
BTE-4201
Accuracy
0.01 g
0.1 g
0.1 g
Capacity
620 g
6,200 g
4,200 g
Pan size
110 mm
160 mm
160 mm

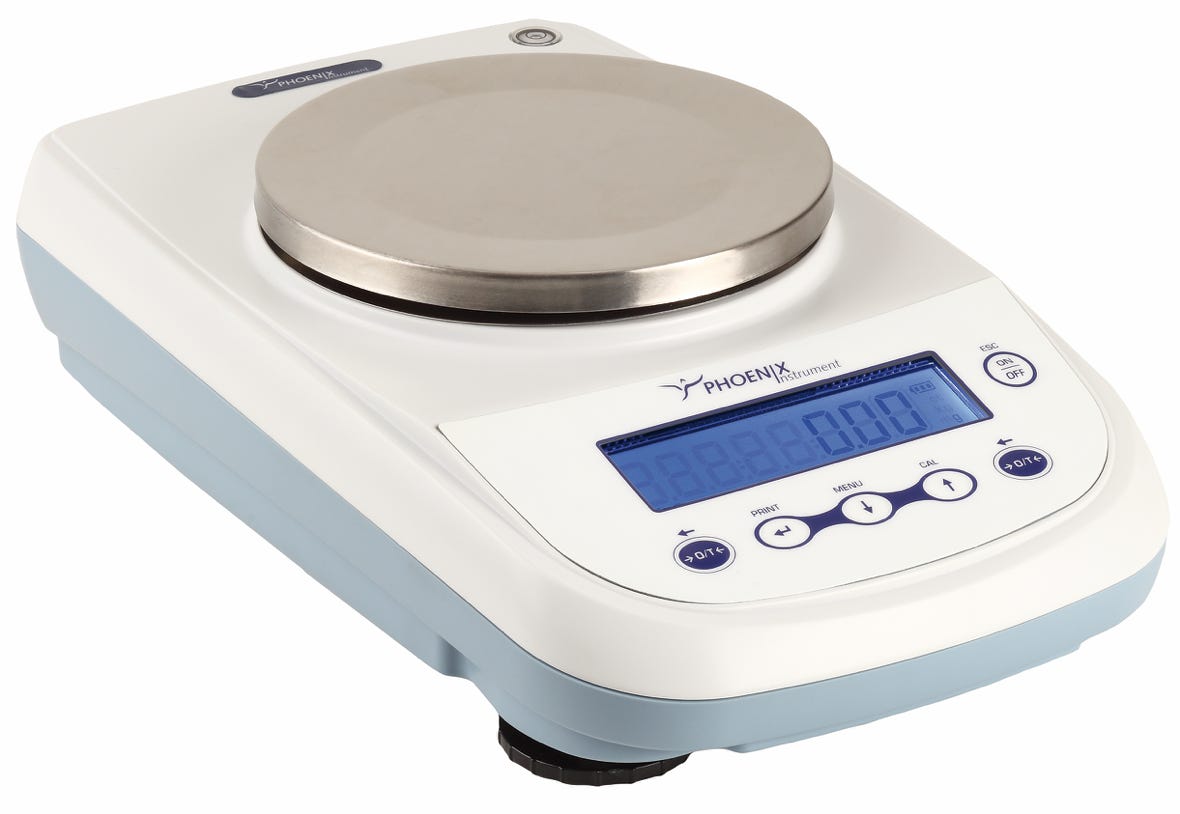

BTF - Series
The brandnew BTF-series offers an excellent economical alternative in the range of toploading balances with an accuracy of 0.001 g to 0.01 g.
• internal calibration weight (BTF-1003i, BTF-6202i, BTF-4202i)
• huge, backlit display
• glass ring protection as standard at mg-balances
• convenient and easy operation
• various application programs
• RS-232-interface
• 3 years warranty
3 seconds measuring time
BTF-1003
Model
BTF-1003
BTF-1003i
BTF-6202
BTF-6202i
BTF-4202
BTF-4202i
Accuracy
0.001 g
0.001 g
0.01 g
0.01 g
0.01 g
0.01 g
Capacity
1,000 g
1,000 g
6,200 g
6,200 g
4,200 g
4,200 g
Pan size
110 mm
110 mm
160 mm
160 mm
160 mm
160 mm
Calibration
extern
inten
extern
intern
extern
intern
BTG - Series
The brandnew BTG-series consists of multi-functional balances with a number of application programs.
They are easy to handle and well-equipped. The internal rechargeable battery ensures a maximum of portability.
• large, bright display
• intuitive and easy operation, large weighing pan
• Model BTG-303 with protection housing
• Calibration weight included
• various application programs
• RS-232 interface
• 3 years warranty

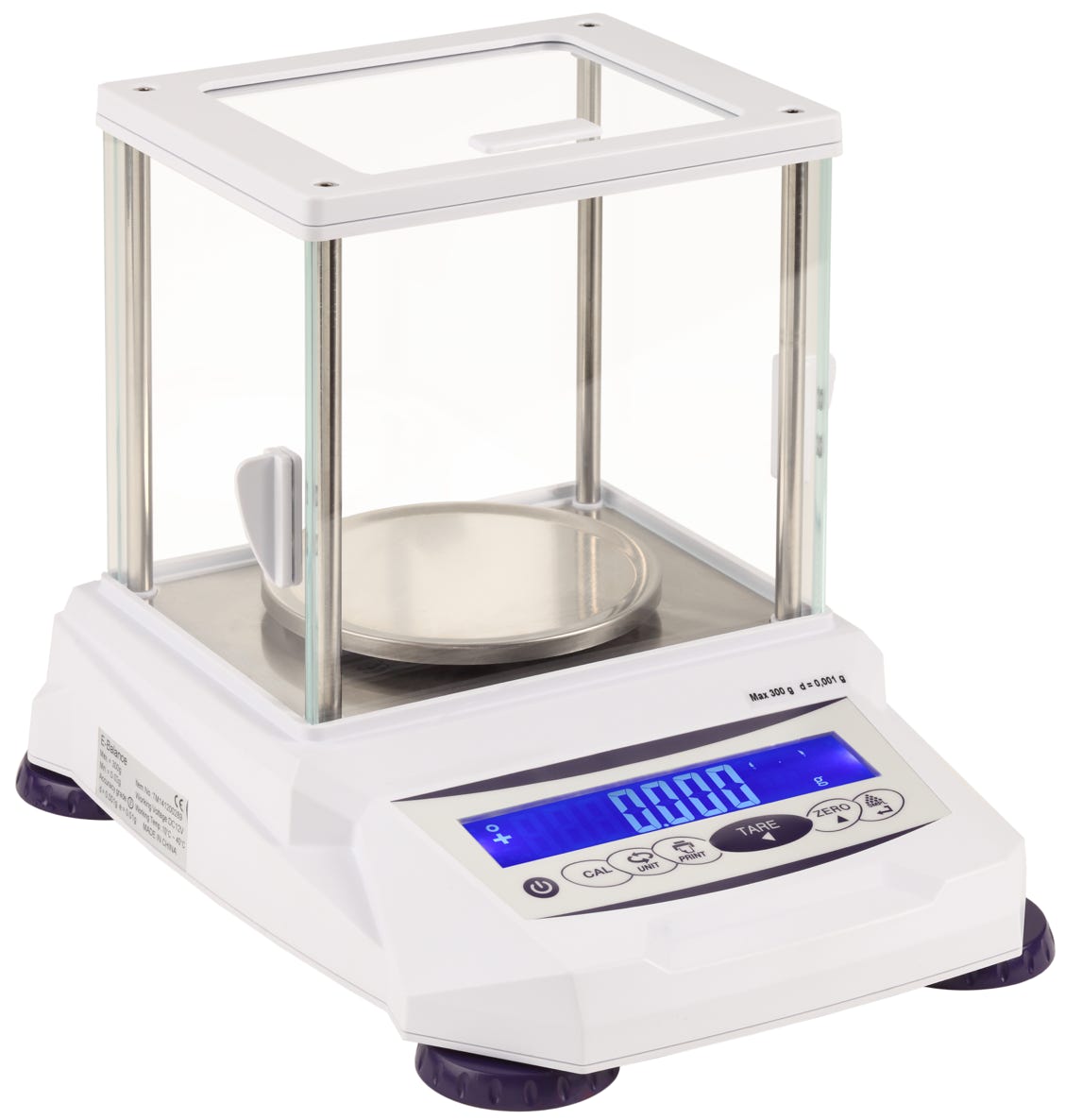

BTG-303

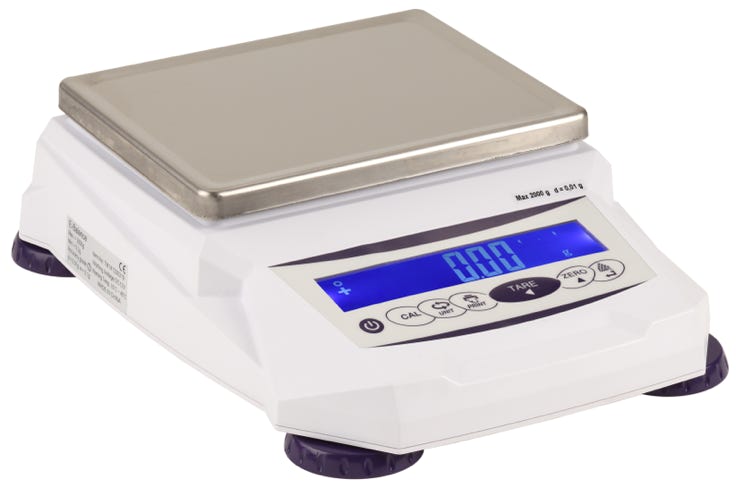

BTG-2002
External Calibration
Model
BTG-303
BTG-2002
BTG-6001
Accuracy
0.001 g
0.01 g
0.1 g
Capacity
300 g
2,000 g
6,000 g
Pan size
118 mm
188 x 148 mm
188 x 148 mm
Meas. time
2-3 sec
2 sec
2 sec
Entry-level model CB-2002 N and CB-6001 N
New entry-level balance for fast and reliable results at an affordable price.
● new balance wit fast weighing system
● backlit LCD - display
● rechargeable battery included
● various programs
● external calibration
● stainless steel pan
● 2 years warranty

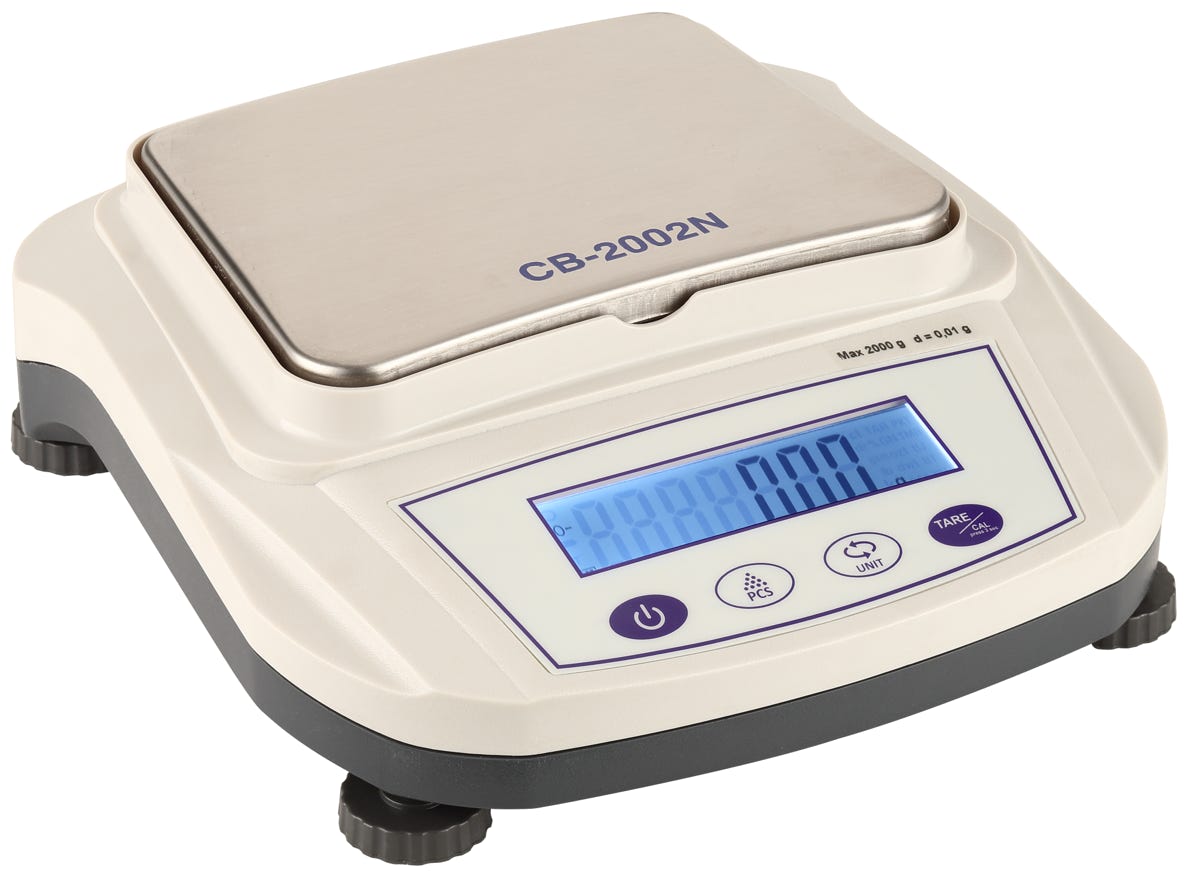

CB-2002 N
Technical data
Capacity
Accuracy
Reproductibility
Linearity
Meas. time
Rechargeable batteries
Pan size
Dimension
Weight
CB-2002 N
2,000 g
0.01 g
0.02 g
+/- 0.03 mg
3 sec
yes
160 x 120 mm
220 x 220 mm
1.2 kg
CB-6001 N
6,000 g
0.1 g
0.2 g
+/- 0.2 mg
1.5 sec
yes
192 x 143 mm
220 x 220 mm
1,2 kg

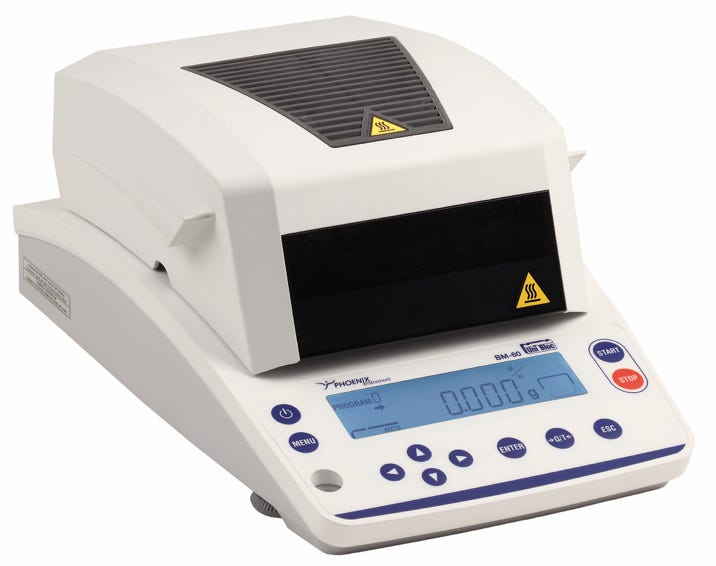

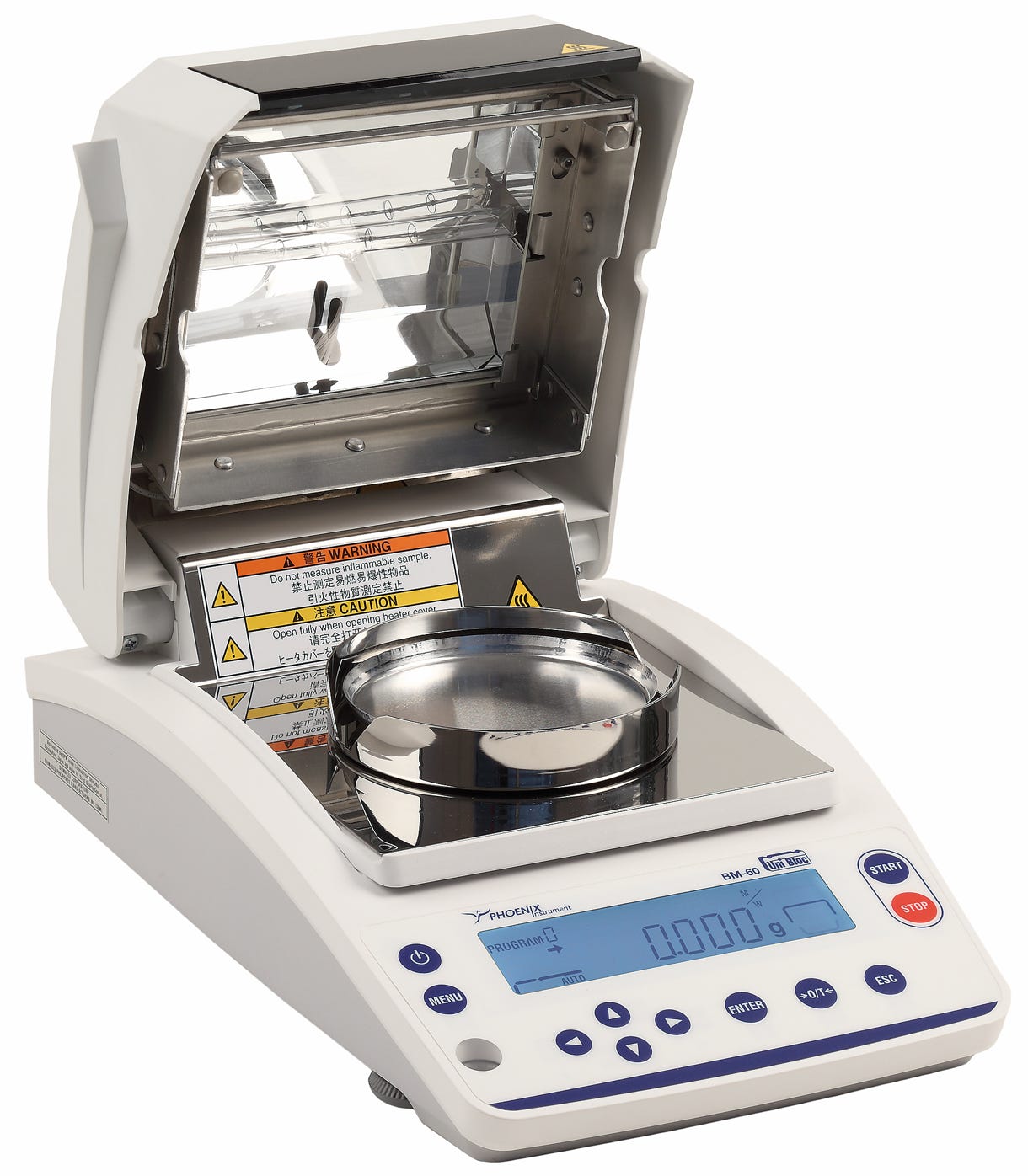

Moisture Analyser BM-60
• the large, backlit graphic display for easily read out
even under poor lighting conditions
• the huge sample pan allows placing even larger
samples on the instrument
• infrared quartz heater provides effective and homogen
drying without interference
• auto-zero function ensures high accuracy measurements
• graphic display of the drying curves
• 5 different drying modes can be combined
with 2 stop-functions
BM-60
Technical data
Capacity
Accuracy
Reproducibility
Pan size
Meas. units
Stabilisation time
Internal memory
Calibration
Heating source
Drying programs
Display
BM-60
60 g
0.001 g / 0.01 %
0.002 g / 0.05 %
95 mm
Gram, % Moisture, % Solids
2-3 sec
10 Programs, 100 Test results
automatic external
400 W-Halogen heater, 50 - 160 °C
Standard, Drying in steps, gentle and fast huge
large backlit LCD display

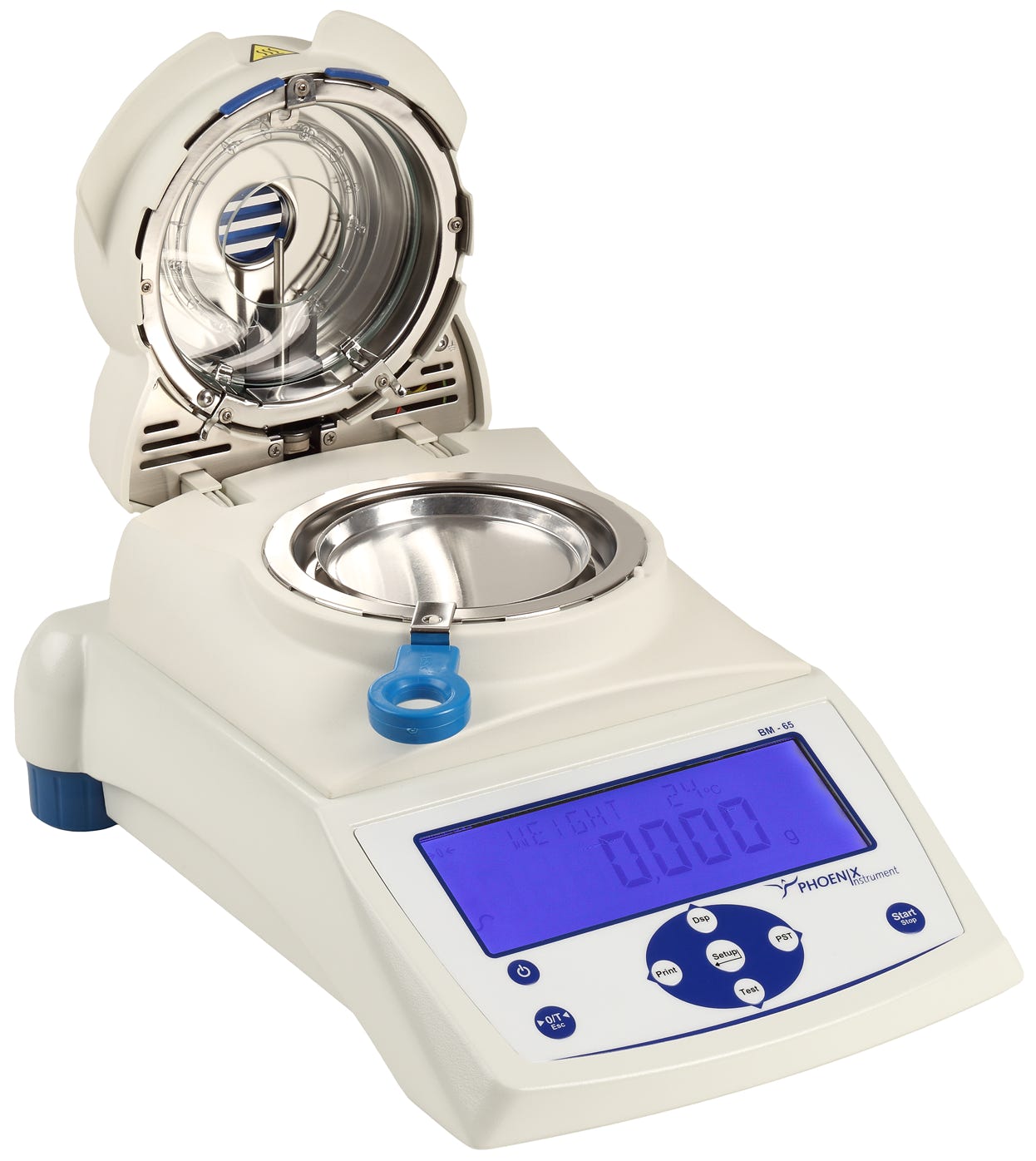

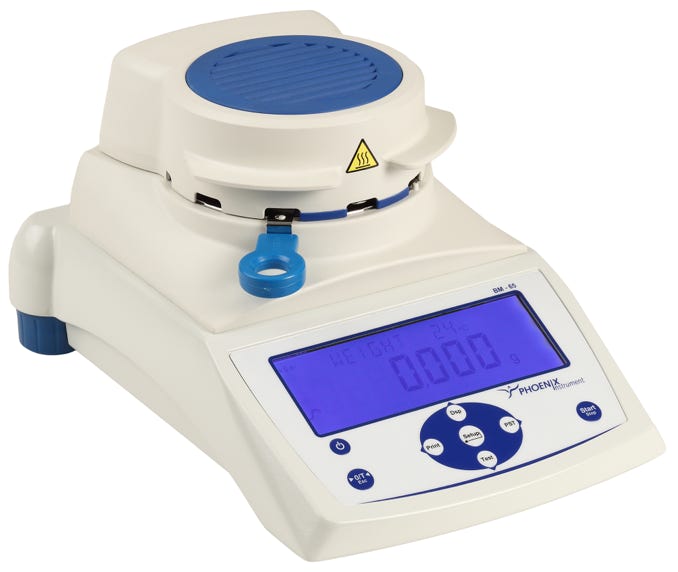

Moisture Analyser BM-65
• large, backlit display for easy readouts
• various parameters can be displayed simultaneously
• automatic test function
• powerful 400 W halogen heater
• internal memory
• automatic test run after the lid is closed
• pan lifter makes placing and changing of probes easier
• bi-lingual menue
• 3 years warranty
• RS232 interface
BM-65
Technical data
Capaciy
Accuracy
Reproductibility
Pan size
Meas. units
Stabilisation time
Internal memory
Calibration
Heating source
Drying programs
Display
BM-65
65 g
0.001 g / 0.01 %
0.002 g / 0.05 %
90 mm
Gram, % moisture, % solids, % moisture on dry bases (ATO %S)
4 sec
Up to 99 test results or 49 programable user setting
external
400 W Halogen heater, 50 - 160 °C
standard one step up to 3 temp. stepping ramps
large backlit LCD display
Accessories
AAC01 Printer for all balances of the AP, ASN, ABN and BTA-BTE series
AAC02 Same as AAC01, plus alphanumeric keypad
AAC03 5 print ribbons, for both printer
AAC05 10 paper rolls for both printer
AAC10 Anti-static tool for all balances of the series AP, ASN, ABN and BTA-BTE
AAC11 Rechargeable accu for all balances of the series AP, ASN, ABN and BTA-BTEE
AAC15 Density determination kit for the AP, ASN and ABN series
AAC16 Glass float for AAC15
AAC18 5 protection cover for the keypad of AP series
AAC30 Density determination kit for models with large pan of the BTA and BTB series
AAC31 Density determination kit for models with small pan of the BTA and BTB series
AAC32 Glass float for AAC30 and AAC31
AAC36 5 protection cover for models with large pan for BTA and BTB series
AAC37 5 protection cover for models with small pan for BTA and BTB series
AAC38 Set for animal weighing for BTA and BTB series
AAC40 5 protection cover for balances with large pan for BTD series
AAC41 5 protection cover for the keypad of BTC- and BTD series
AAC45 5 protection cover for balances with large pan for BTE series
AAC46 5 protection cover for the keypad of the BTE series
AAC70 Sample pans aluminium (250 per box) for BM-65
AAC71 Temperature calibration kit for BM-65
AAC73 Anti-theft lock for BM-65
AAC80 Weighing table made of granite, size: 900 x 600 x 750 mm
Calibration Weights
are available on request

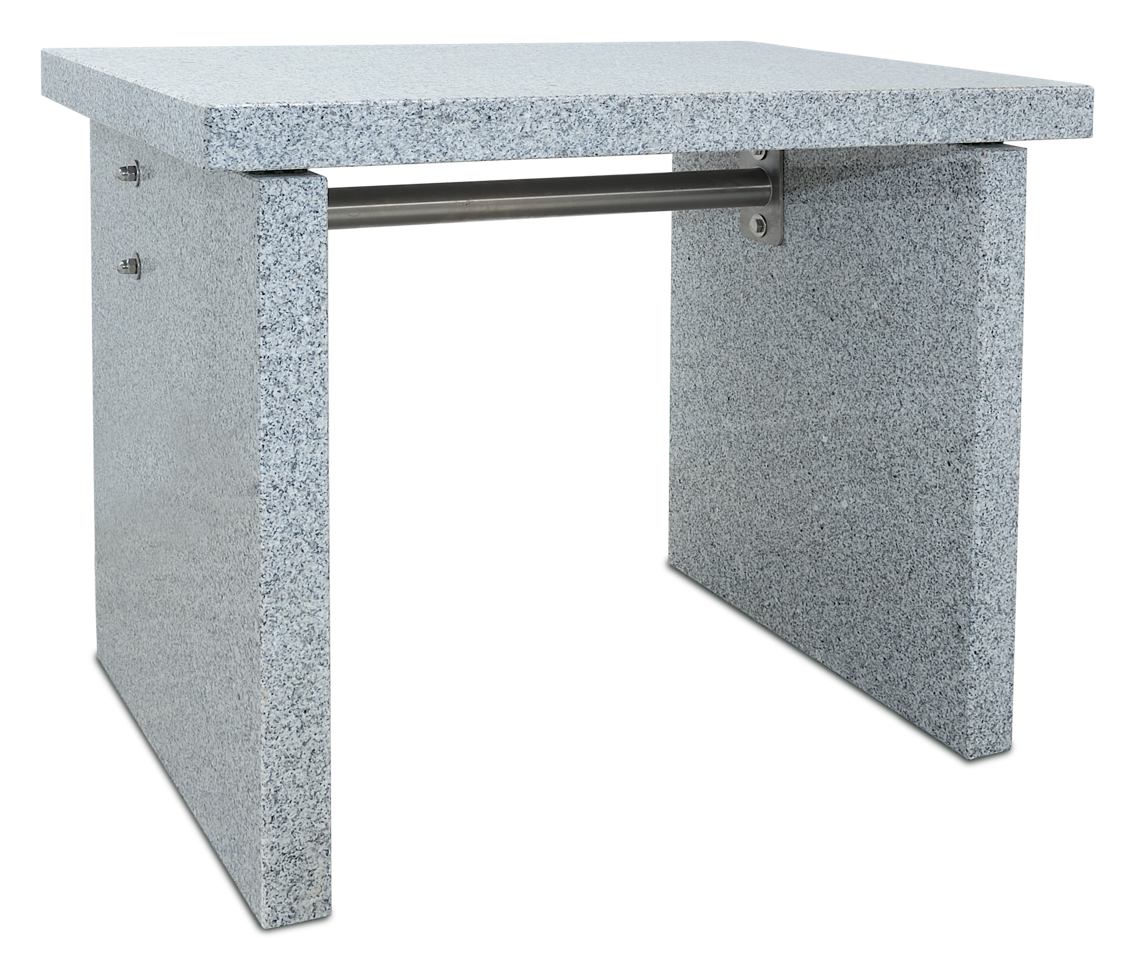

Weighing Table AAC80
Phoenix Instrument GmbH
Tel.: +49 5131 / 90 818 -30 • Fax: +49 5131 / 90 818 -39
Heinkelstraße 4 • D-30827 Garbsen, Germany
